***NEW IMPROVED HOLE PATTERN AND NOW IMPROVED ADJUSTMENT MECHANISM!***

And THIS IS A LARGER 6 INCH WIDE VERSION!

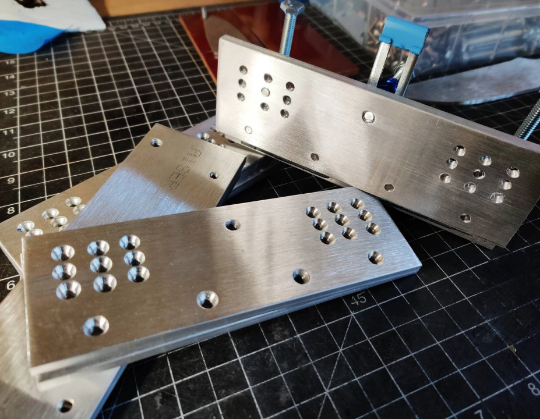

MORE HOLES TO ACT AS HEAT SINK AND POSITIONS TO HOLD YOUR BLANK!! Can do everything that the smaller version can do just gives you the option to hold larger size blades!

See the demo video:

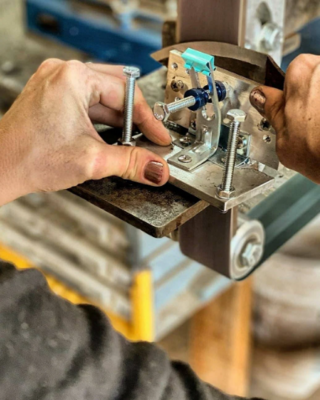

Custom Aluminum Jig- used by beginners and experienced makers to grind clean bevels.

Can adjust through a wide range of angles for different bevel heights.

**This fixture is now measured and marked out by a machinist then drilled, tapped and assembled in house personally.

All jigs are made by me and checked for proper operation prior to shipping.

All adjustment holes tapped

Now more options for securing your blade.

Hi/Lo and offset

Shallow bevel

Steep bevel

Wider blades now fit easier with lowest adjustment hole.

6 inch wide

2.5 inch high

With overhang, will accommodate up to a 8+ inch blade to be ground.

Aluminum acts as a heat sink pulling the heat from your blade. 1/2 the weight of steel jigs yet just as strong. Easy to adjust mechanism- firmly holds desired angle with the 2 anodized aluminum nuts and the simple up/down pivot. All holes drilled and tapped - multiple tapped holes use screws to hold various size knife blanks as well as disburse heat. Can add screws or clamp to hold blank in place, or just hold with your hand.

This jig fits on most work rests and tables.

Perfect for 1x30, 2x42, 2x48 and other small grinders or up to standard 2x72 machines.

** The jig holds the angle that you set. That is usually the hardest part for a beginning knife maker.

This jig has produced many finished bevels by me and others and works as described.
